RiteFit Rail Under Bracket

Name: RiteFit Rail Under Bracket
SKU: HLN-RITEFIT-UNDER-BRACKETS
Availability: InStock

RiteFit Rail Under Bracket

From: $55.59 inc. GST

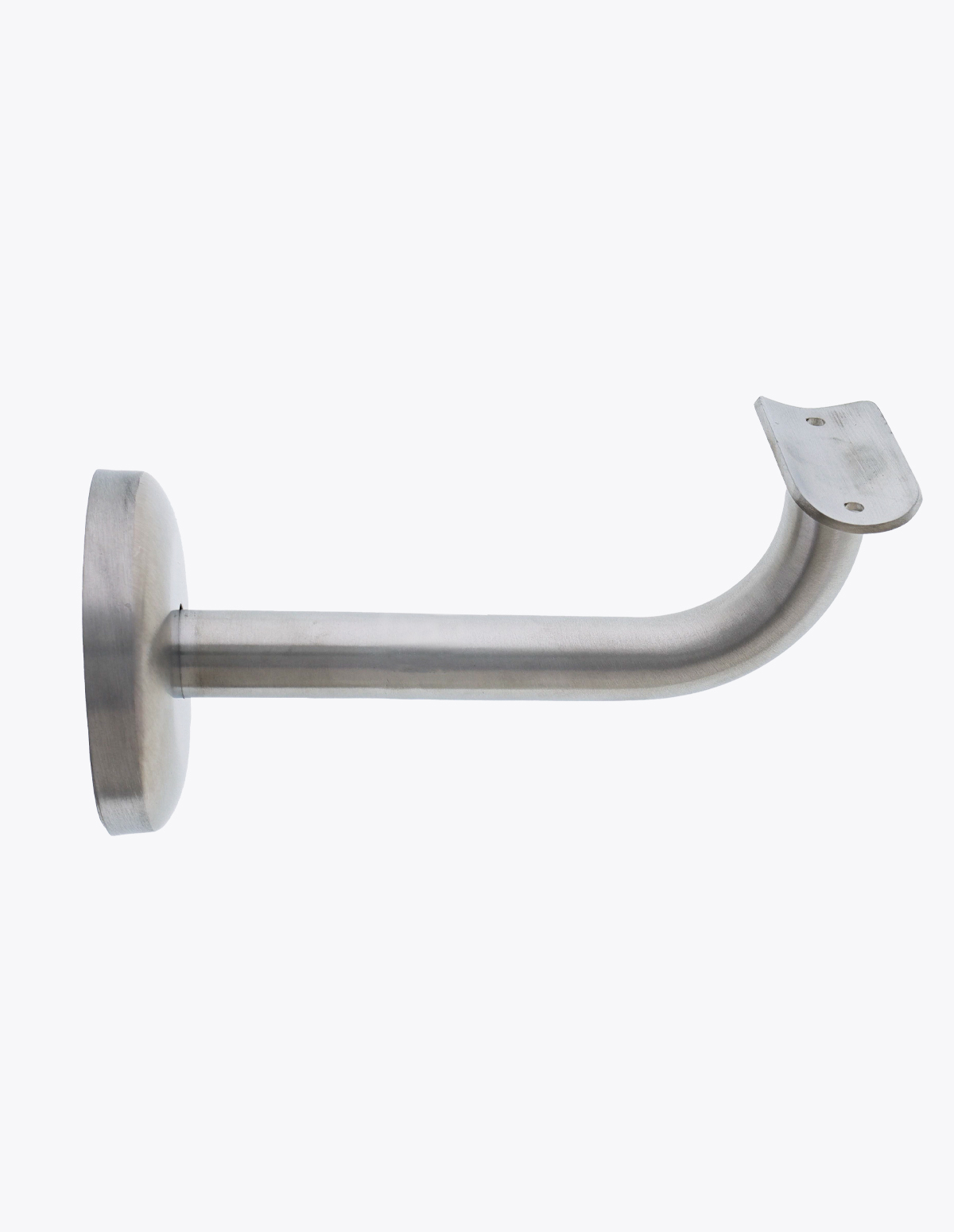

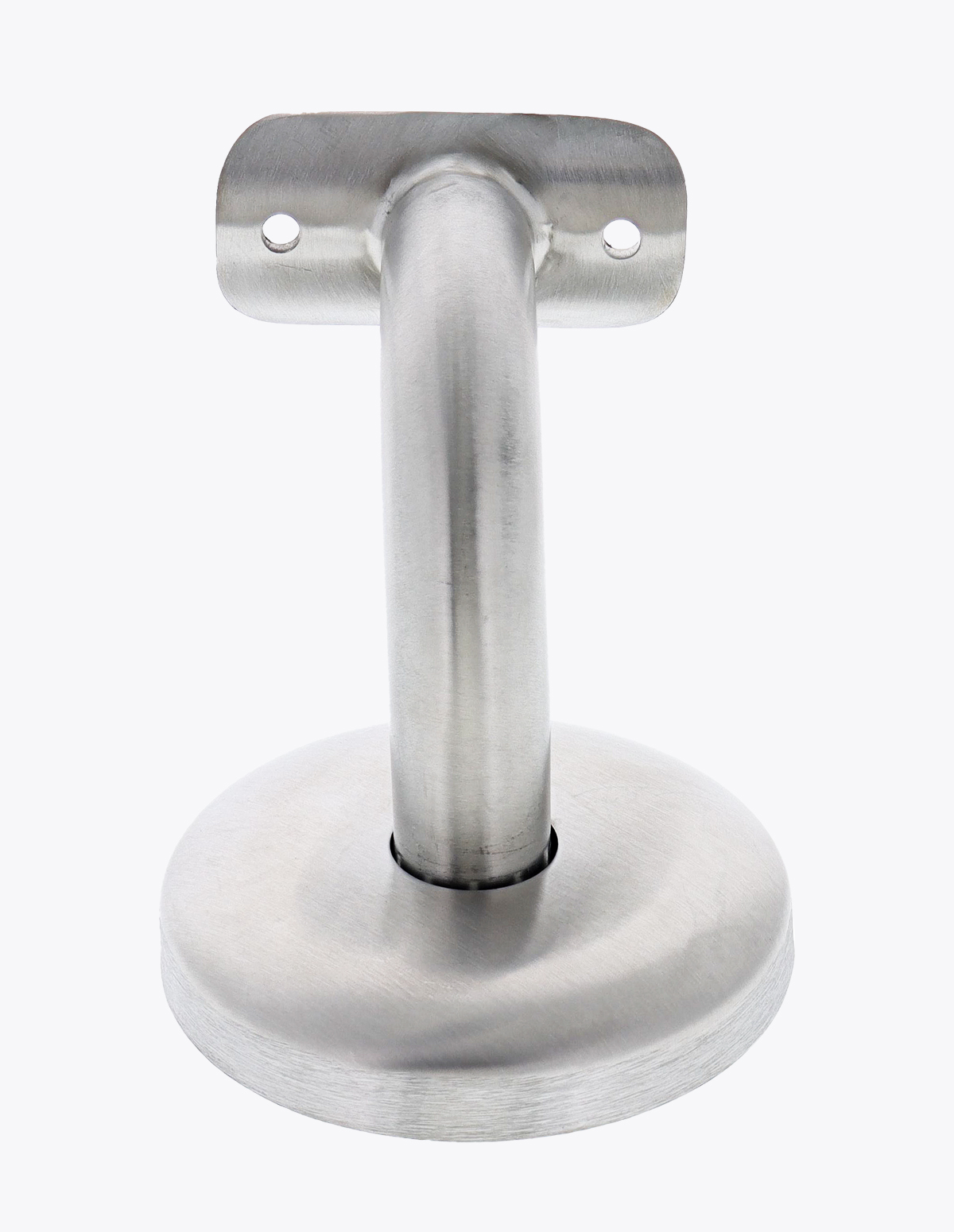

A hand rail support bracket made for the RiteFit range. Has a 75mm flange with a flange cover provided, a cupped plate (measures 60mm) with two fixing holes of 4.5mm diameter which are 43mm apart.

There is a second model available that is an extended version. This has been manufactured to allow a rail to comfortable pass a stormwater pipe or guttering that may be attached to the outside of a building. This model is 75mm deeper than the standard one, making it 150mm in depth from it’s fixing point.

Finish
Diameter (mm)
Description	Clear

SKU: HLN-RITEFIT-UNDER-BRACKETS Categories: Brackets, Rail Series, RiteFit Rails, Under Brackets Tags: 38mm, Brushed Stainless Steel, RiteFit Rails

Description

A hand rail support bracket made for the RiteFit range. Has a 75mm flange with a flange cover provided, a cupped plate (measures 60mm) with two fixing holes of 4.5mm diameter which are 43mm apart.

Industry Standard

Made to industry standards and of 304 grade stainless steel.

Diameter Size Option

Rail diameter size of 38mm.

Concealed Fix

Finished off with a snug fitting concealed cover plate (Screws & wall plugs provided).

Finish

Available in finishes of brushed stainless steel.

Vast Range of Length

A vast range of different lengths to choose from; 2300mm up to 1200mm. Length is measured in between the centre of each flange.

Flexibility

Offers five hole fixing flexibility which provides the installer with a wider option of fitting points where inconsistency behind the walls may occur.
